Solary Electricals 3-Head Short Wave Infrared Paint Curing Lamp - Model B3EA

Solary Baking Infrared Paint Curing Lamp, Automotive Heat Lamps for Paint

SOLARY

4.7 / 5.0 based on 6 reviews

$554.99 $589.99 Save $35

Description Technical Data
  • Solary Electricals B3EA three head lamp infrared curing lamp is a 300-degree rotatable 3 heads curing lamp equipped with 3 180-degree rotatable individual chairs.
  • B3EA infrared curing lamp generates direct, powerful penetration into the inner layer of paint. Completely dry two-pack paints within 15 minutes and polyester putty in 5 minutes.
  • Compared with model B3E, model B3EA has a function of adjusting baking power (temperature).
  • Individually adjustable emitter cassettes with a service life span of up to 6,000 hours.
  • Gradual temperature increases with full baking function for professional finishing.
  • Adjustable curing power.
  • Switch: CE/UL certified, high quality, and steady performance.
  • B3EA infrared curing lamp is ideal for polyurethane paint (components paint), single-component paint, and water-based paint
  • Even radiation with timer, pre-heating, and full baking functions. If you want an extra distance sensor function, check out Solary Electricals B3S Infrared Curing Lamp.
infrared paint curing lamp

Our paint-baking lamp adopts upgraded short-wave infrared technology, and the paint-baking efficiency is higher than that of traditional heat sources. Presenting a bright paint surface only takes 15 minutes, saving your working time and improving your work efficiency.

CAR PAINT LAMP
Powerful Short Wave

Fitted with a powerful 3x1050W short wave infrared lamp, the machine can achieve a quick baking—temperature range of 40-70℃. The short wave has good penetration, making the drying surface smooth.

Large Drying Surface

The drying areas of three individually controllable infrared lamps are up to 1x0.8m², which is powerful and efficient.

Security Overload Protection

This baking lamp is adopted with automatic safety overload protection. It is designed to avoid burn-in and prolong the service time of the machine.

Technical Data:

  • Input voltage (50/60Hz): 230V 1Ph
  • Emitter power(W): 3x1050
  • Max power(kVA): 3.2
  • Timing range (min): 0-30
  • Baking area(m²): 1x0.8
  • Temperature(°C): 40-70
  • Net weight(kg): 39

Details:

Light stand can be rotated 90 degrees

The lamp head can be rotated

Gas Strut

Universal Hovering System

The lamp head is equipped with locking handles in all directions, which can realize all-round hovering, which is convenient for you to paint all parts of the car.

The Lamp Head can be Rotated

The single lamp head of the paint curing lamp can adjust the angle independently, the operation is flexible, and it can paint the car in all directions.

Gas Strut

The paint lamp stand has a pneumatic strut adjustment, which can quickly and conveniently adjust the height and angle of the paint lamp, saving time and effort.

Multi-angle Display

angle -1

angle -2

angle -3

angle -4
  • Model: B3EA
  • Functions: Timer, pre-heating, full baking, adjustable curing power
  • Input Voltage (50/60Hz): 230V 1ph
  • Emitter Power (W): 3 x 1050
  • Max Power (kVA): 3.2
  • Timing Range (min): 30
  • Baking Area (m²): 1.0 x 0.8
  • Temperature (°C): 40 - 70
  • Net Weight: 39kg

Customer Reviews

Based on 6 reviews
67%
(4)
33%
(2)
0%
(0)
0%
(0)
0%
(0)
B
Brian C Bowen
Works well but finicky to assemble

These lamps heat up very quickly and produce lots of heat.But assembly takes a little effort.

J
J
Plenty hot enough

The heat lamp stand is plenty sturdy and easy to see, keeping you from tripping and knocking over the hot stand. Lamps get hot quick, great for raising paint booth temperatures for paint curing. Faster cure times free up paint booth space.

E
Ethan Robinson
I couldn't be happier with my purchase!

I couldn't be happier with my purchase! The baking lamp with a timer is a genius addition, and the individual control switch makes it easy to manage the drying process. Perfect who want fast-drying results without compromising quality.

M
Madison Cooper
Excellent light for the money.

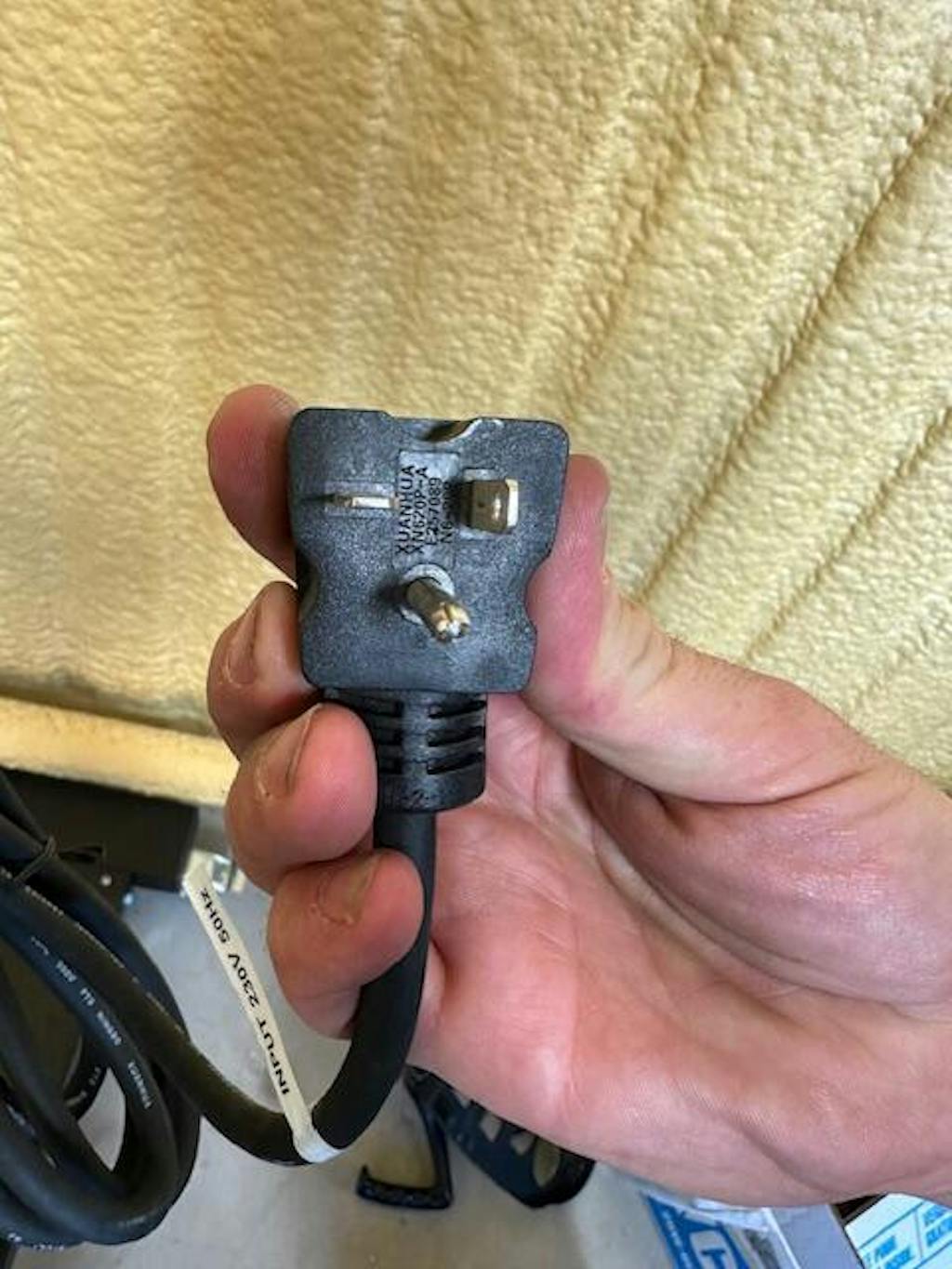

Excellent quality. I was looking at similar units for over $2000 thought I’d take a chance. Glad I did. The one thing I found out is you absolutely need a 30 amp breaker in your breaker box to use all three lights at the same time. If you only have 20amp just use two of the lights at the same time. Flash off feature is nice. You can program the unit to use the flash off feature for a certain amount of time and then it will automatically turn off or you can set it to go on for cure mode for a certain amount of time and then the unit will cycle and turn off by itself.

This is a short wave light and if you’re used to a medium wave light like I was you will notice it takes a little longer to get the surface temperature of. Although this unit is fast it’s just not as fast as a medium wave light in my experience. I’m using this in my auto body shop for curing paint and also using it in my vinyl wrap shop for removing old vinyl wraps and post heating completed wraps.

E
Ella
Great heat lamp!

I have used these shop heat lamps for years, inexpensive, gives off great heat for curing primer, paint, adhesives a must have
